高速四伺服小型雙片釘箱機Series High Speed Four Servo Doubl

 產品詳情

 機械特性：（Mechanical Properties）

 ·日本安川四伺服驅動，精度準確，機械傳動部分減少，可有效減少機械的故障率。整個控制系統采用永宏P(guān)LC控制系統。控制箱內接觸器全部采用法國施耐德品牌。繼電器、斷路器采用法國施耐德品牌，光電和接近開關采用日本歐姆龍品牌。

 ·底模，刀片采用進口鋼制作耐磨。

 ·整組釘頭全部采用特殊鋼制作，電腦數控精密加工。

 ·變換紙箱尺寸和調節紙箱釘距只需一分鐘就可完成，大大節省時間操作方便。

 ·前后雙向擋板配置，可訂無蓋紙箱及小紙板箱、彩箱。

 ·后段有自動計數功能，做好的成品張數可按設定數量（1-99）分疊送至輸 送機械末端，方便打包捆扎。

 ·前端送紙部自動計數，送紙臺設有光電感應裝置，送紙時自動上升。

 ·給紙高度：900mm。

 ·機械速度：500釘/分鐘。

 ·一臺兩用，可釘單片接釘紙箱，雙片接釘紙箱，不規則紙箱。

 ·尺寸采用全電動式控制，變換尺寸只需2-3分鐘。

 ·可釘加強釘，單釘，雙排釘，一次完成。

 ·送紙部自動計數，成品送出捆扎。

 ·適用于中小型紙箱、裝釘快速而省力。

 ·調整釘距，使用電腦設定自動調釘距，釘距為20-120mm任意可調；

 ·本機采用電腦熒幕顯示故障說明。

 ·自動送絲系統，無絲報警，20KG大盤扁絲，節約時間。

 ·適用瓦楞紙板三層、五層、七層（七層時需特殊說明）。

 ·本機采用四個伺服電機（即兩個機頭電機和兩個控制釘距電機）。

 ·整機電器隔離變壓器保護功能；

 ·整機訂單式調整，可儲存1000個訂單。

 ·裝訂方式:雙直釘或單直釘/加強釘

 ·Japan Yaskawa four servo drive, accurate accuracy, reduced mechanical transmission parts, can effectively reduce the mechanical failure rate

 .The entire control system uses Yong Hong PLC control system. The contactors in the control box are all made by the French Schneider brand

 .The relays and circuit breakers are made by the French Schneider brand, and the photoelectric and proximity switches are made by the   Japanese Omron brand.

 ·The bottom mold and blade are made of imported steel.

 · The whole set of nail heads are made of special steel and CNC precision machining.

 · Change the size of the carton and adjust the carton nail distance in one minute, which saves time and is easy to operate.

 ·Two-way front and rear baffle configuration, can be set without cover carton and small cardboard boxes, color boxes.

 ·There is an automatic counting function in the back section. The number of finished products can be sent to the end of the conveying machine in a set number (1-99), which is convenient for packing and binding.

 ? The front feed unit automatically counts, and the paper feed table is equipped with a photoelectric sensor that automatically rises when feeding.

 · Paper feed height: 900mm.

 · Mechanical speed: 500 nails per minute.

 · One dual-purpose, nailed single-piece carton, double-stacked carton, irregular carton.

 ·The size is fully electric, and the size is only 2-3 minutes.

 · Nail can be nailed, single nail, double row nail, once completed.

 ·The paper feeding section automatically counts and the finished product is sent out and bundled.

 ·Applicable to small and medium-sized cartons, fast and labor-saving.

 ·Adjust the nail distance, use the computer to set the automatic nail adjustment distance, and the nail distance is adjustable from 20-120mm;

 ? This unit uses a computer screen to display the fault description.

 ·Automatic wire feeding system, no wire alarm, 20KG large flat wire, saving time.

 ·Applicable to three layers, five layers and seven layers of corrugated cardboard (special instructions are required for seven layers).

 ? This machine uses four servo motors (is two head motors and two control pin motors).

 · Protection function of the whole machine electrical isolation transformer;

 · Order adjustment of the whole machine, can store 1000 orders.

 · Binding method: double straight nail or single straight nail / reinforcing nail

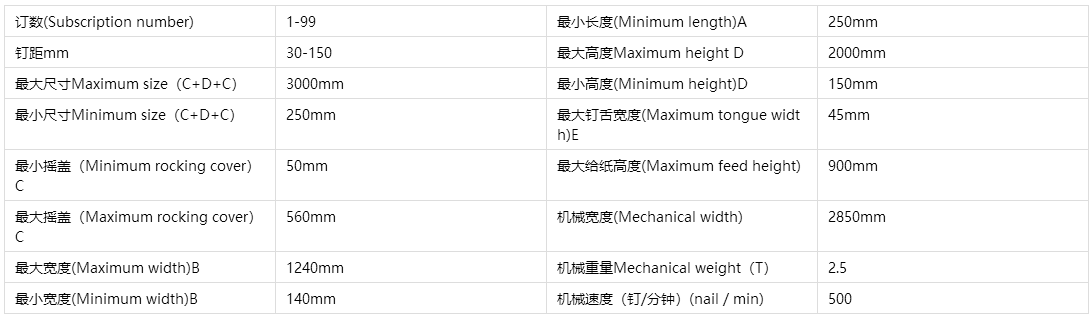

主要技術參數：（Main Technical Parameters）
